Media Filter Advice
Pool Sand Filter Repairs & Media Filter Troubleshooting Perth | The Deep End

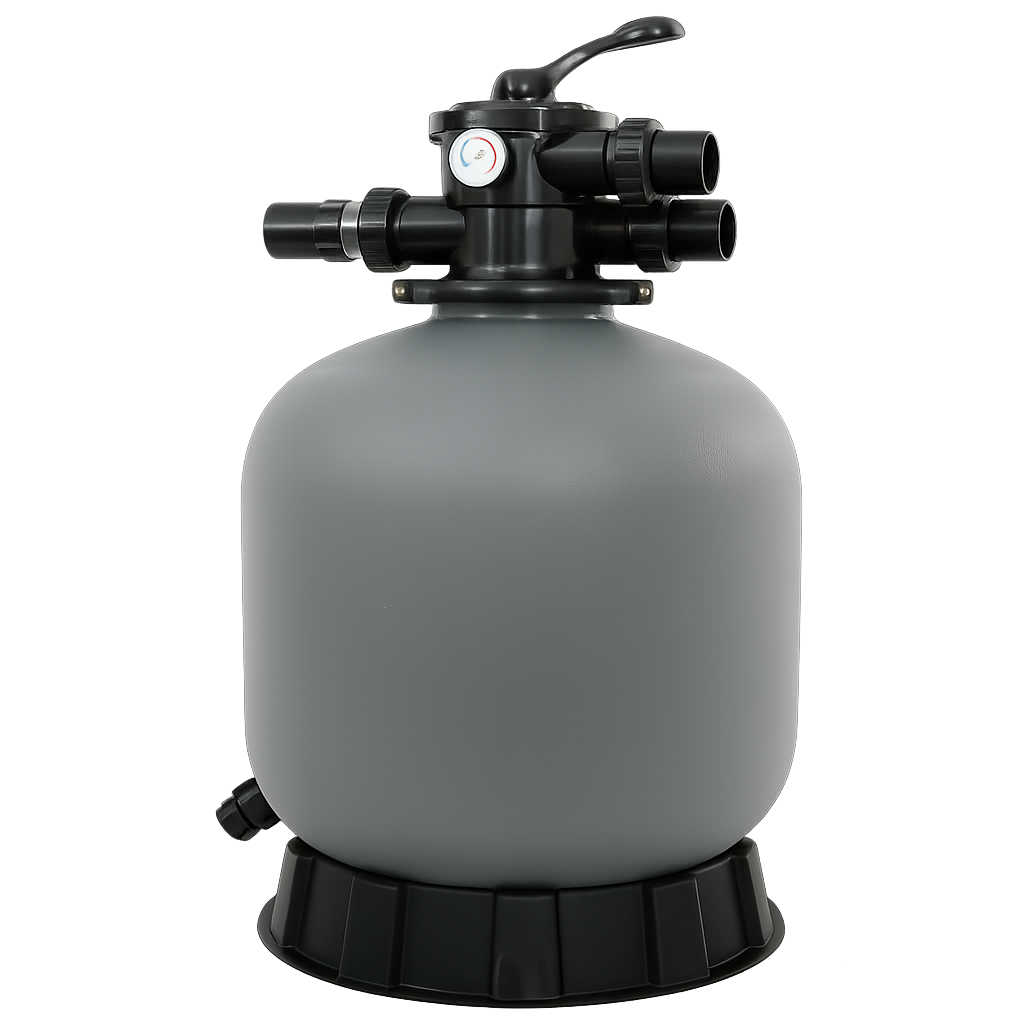

Media filters are one of the most common types of filter found on swimming pool equipment setups in Australia. They are for the most part very reliable and durable and can last upwards of 20 or 25 years.
Despite their reliability you can still run into issues, especially when they havn’t been maintained punctually. We can help you find out what issues you are having with your filter and give you guidance on how to repair it.
We repair and service swimming pool media filters across Perth including Guildford, Midland, Ellenbrook, Bayswater, Bassendean and many other areas of Perth!
-

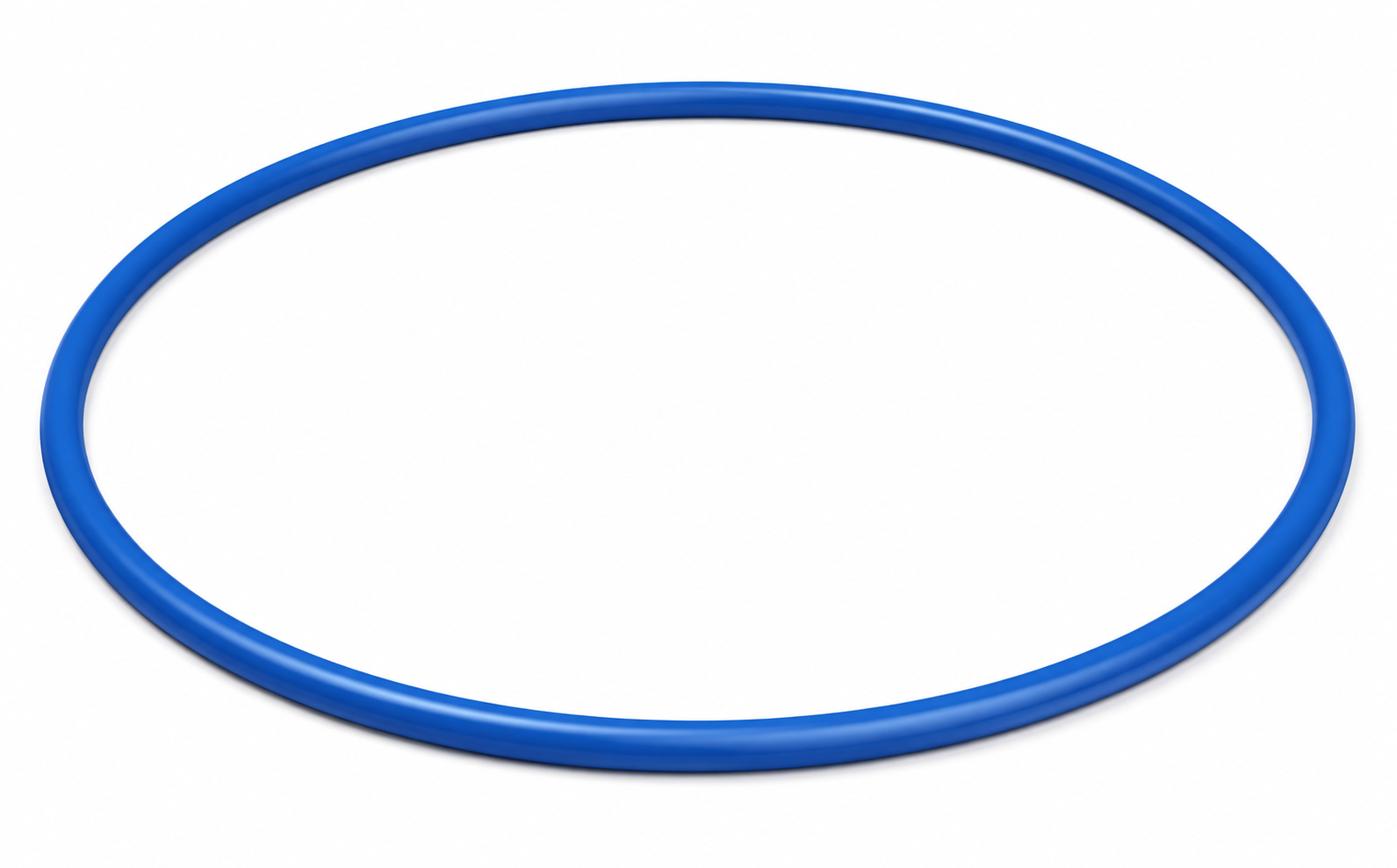

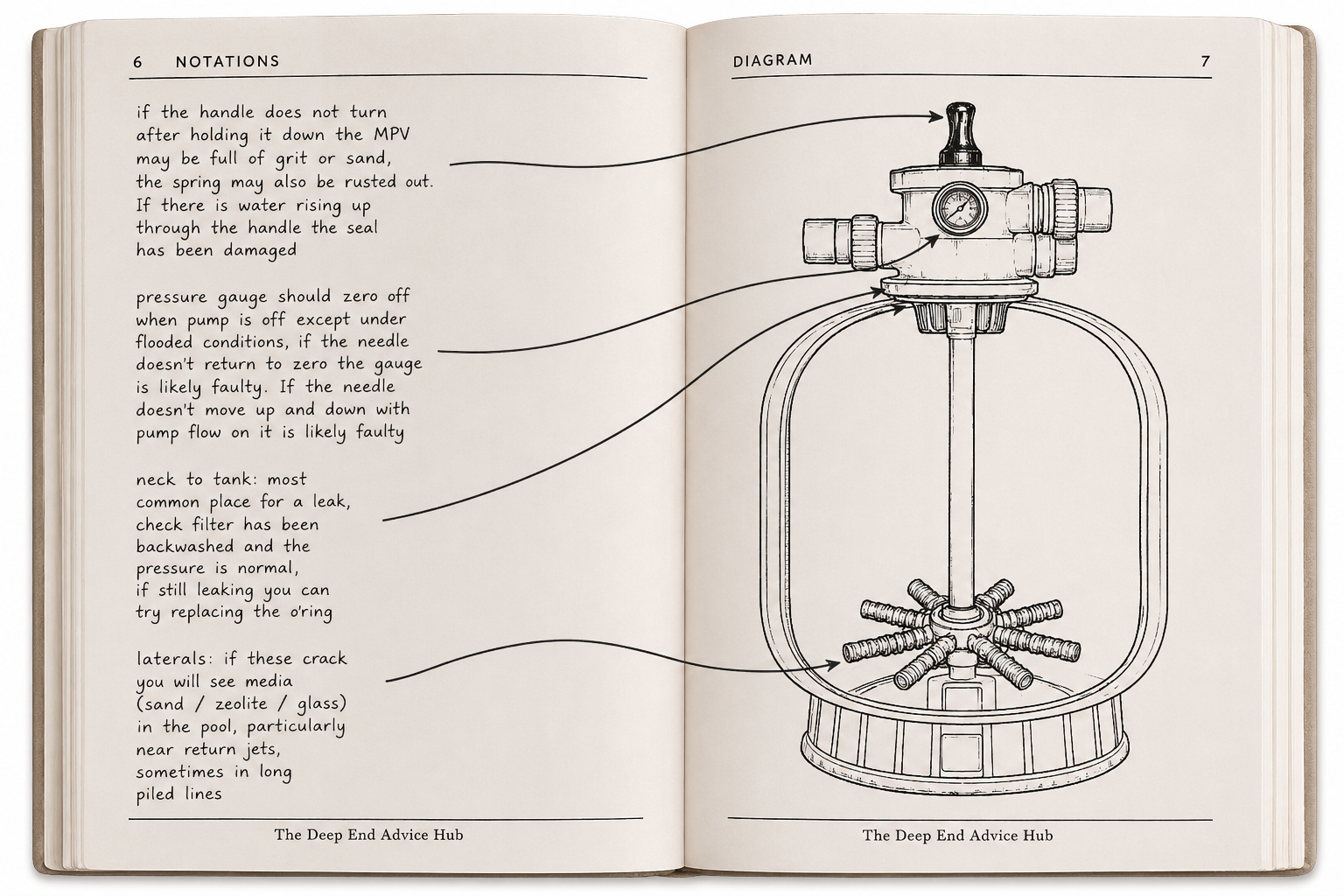

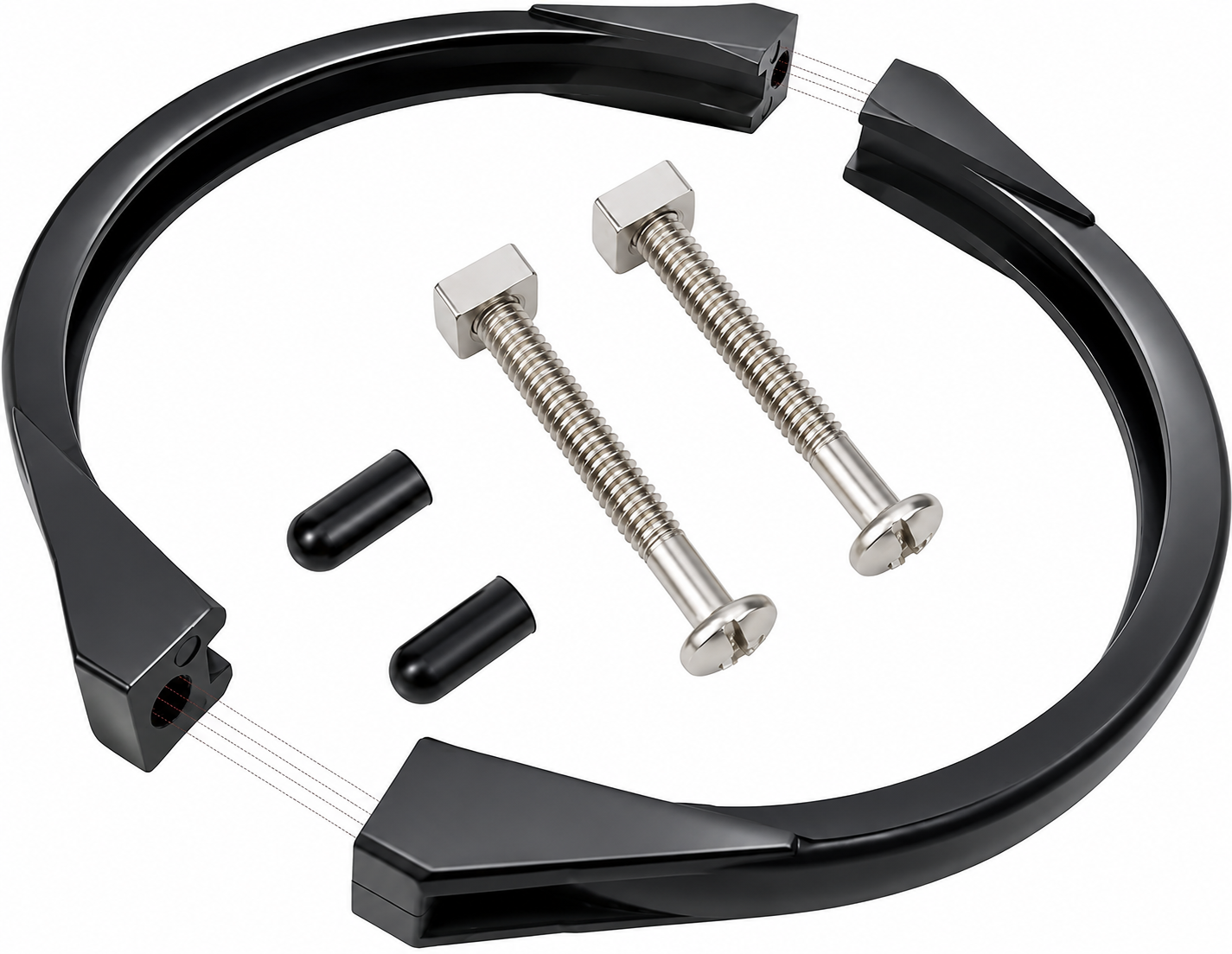

Most media filters have their multi port valve attached at the neck with a set of clamps, threaded collar or bolted collar. They can sometimes leak from this join. A leak here can sometimes be caused by excessive pressure due to the filter needing a backwash. It can also be caused by compacted media or a worn out O’ring.
-
Usually a blockage in the brass spiral or an oil leak in the face, likely need to be replaced
-
It’s possible, there can also be many other factors contributing to cloudy water though. If you have good water chemistry, good pump flow and still have cloudy water, there is a good chance your media is losing its efficiency
-

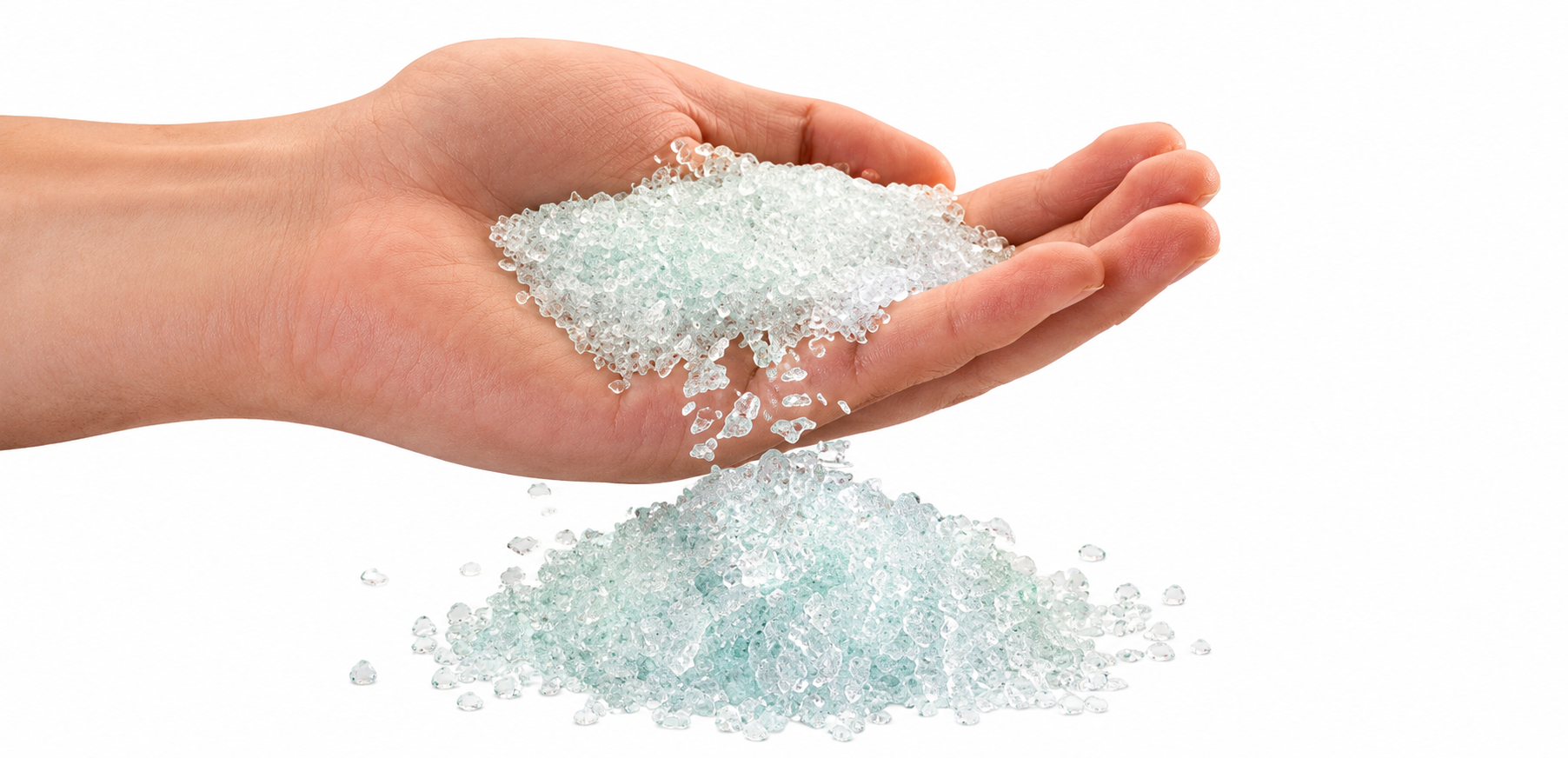

“Compacted” pool filter media can happen when granular media clumps together and hardens over time due to accumulated scale, organic matter, or fine debris, rendering the filter ineffective. Media can also become smoothed out and lose it’s ability to catch dirt efficiently. The Deep End can do a media change on your filter providing the tank is in good shape and not too deteriorated, if that is the case we can install a new replacement media filter.
-
There can be a few things that can cause this problem, concrete, sand or grit caught in the valve head creating friction. A rusted or corroded Top Half Assembly spring, a displaced spider gasket. Whatever the issue is we can diagnose and offer repair solutions on site.
Multi Port Valve replacement & repairs.
We can source filter parts and components for your filter and replace them on site
Signs Your Media Filter May Need Repairing or Replacing
leaks
constant cloudy water
pressure getting high soon after a backwash
old media returning to the pool
handle doesn’t turn or is very difficult to rotate
